Hybrid Protocol MOD009DRA

Access

• Project panel → Dashboard → Click on the



  symbol in the project header → Hybrid Protocol
• Project panel → Further... → Miscellaneous → Hybrid Protocol

Information

• Here, the requests of an object which are to be sent to an external system are protocoled.

Details

• The module shows all tasks/resource assignments from the schedule which are relevant for an external system.
• Via the protocol you can monitor how a synchronized record has been changed over time.

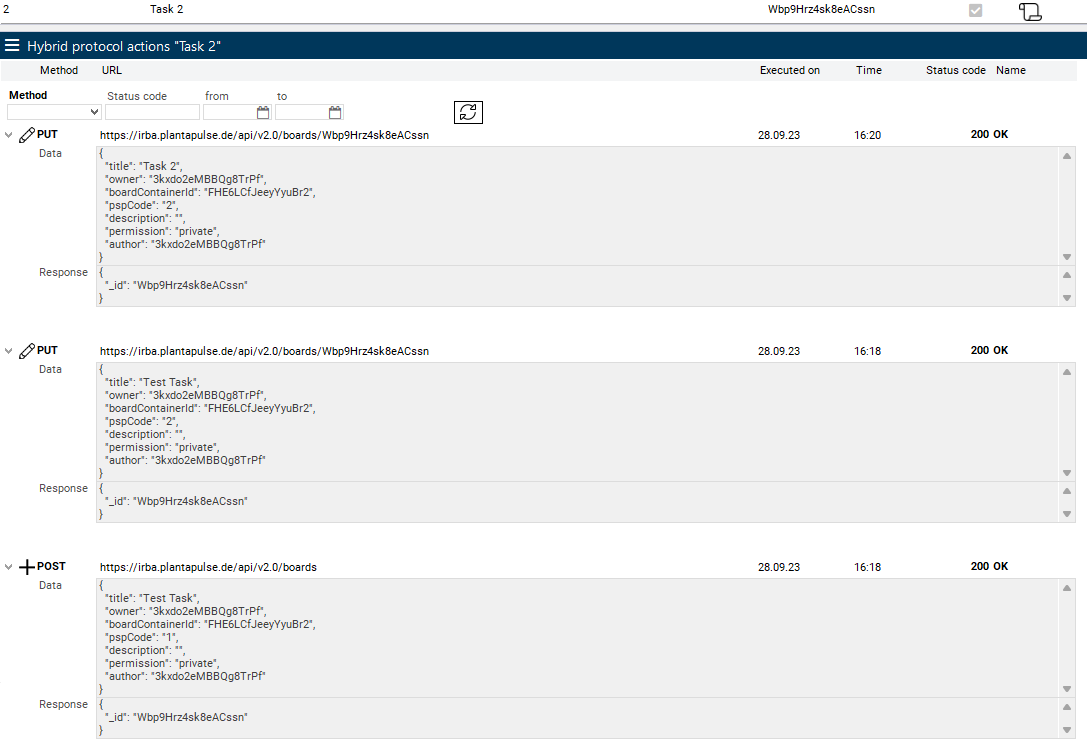

Example

• 1) The record was created with a POST with WBS code 1
• 2) The record was updated with a PUT and the WBS code was changed to 2
• 3) The record was refreshed again and the task name was changed to “Task 2”

Note

• If a request is repeated and the same error is triggered, no new record is created but the most recent record is updated. A new record is only created if something changes in the transmission.
