Data Fields

ID, Input and Output Fields

Information

• When data is created, changed and saved, PLANTA distinguishes between:

  • ID fields: Values can only be entered once and cannot be changed later.
    • Depending on the customizing settings the IDs can be entered manually in the ident fields or they are generated automatically. Further information...
  • Input fields: Entries can be changed at any time.
  • Output fields: Display of information.

Details

• If a field is active, it is displayed with a colored background.
• Only one input field can be active at a time.
• Every click on a new input field deactivates the previous one.

Note

• A record remains invalid until all of its ID or key fields are filled.
• If several users are editing simultaneously, the changes made by the last user to save will be applied.

Stop

• Umlauts and special characters should be avoided in ID fields for the following reasons:
  • If umlauts are used in ID fields, the records can only be called up by users with umlaut-enabled clients. In international operations, however, this cannot always be guaranteed.
  • If regular expressions such as * ?![ ] - $ are used in ID fields, when a project is deleted, it is possible that other projects are deleted in addition to the selected project. For example, if a project with the ID 4?11 is deleted, all other projects with a four-character ID starting with 4 and ending with 11 will also be deleted.

Link Data Fields

Information

• The values of link data fields are displayed as links and are used to start several actions, e.g. starting of modules, macros etc.
• If you move the mouse over such a field, the cursor changes its display symbol.

Example

• Link on the Project field in the Projects module (Multi-Project Board)

Mandatory Data Fields

Information

• Mandatory data fields are marked with an asterisk.
• Since in mandatory fields input is obligatory, you cannot save until every mandatory has been filled.
  • If you try to create a record which contains mandatory fields and try to save without filling the mandatory fields,
    • either the Mark invalid records? message will be displayed and the entire record will be marked. This means that either the mandatory data fields have not been filled completely or that the manual ID has not been allocated or both
    • or the Mandatory input not made, saving canceled. message will be displayed. This means that not all mandatory fields have been filled yet. Saving is only possible after the mandatory data fields have been filled.

Notes

• For records with mandatory fields and automatic ID generation, the ID will only be generated once all mandatory fields have been filled.
• If several users are editing simultaneously, the changes made by the last user to save will be applied.

Example

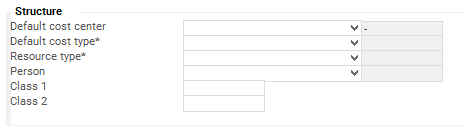

• The mandatory Default cost type and Resource type data fields in the Resource Data Sheet administration module.

Listboxes

Information

• A listbox is always a data field which offers a list of values for selection.
• By clicking on the pull down button at the right margin of the listbox field or via ALT + down-arrow you can open the listbox and select the required entry.
  • You can open the listbox module by entering partial strings in the listbox field. Further information on partial string input.
• If you have selected a listbox entry and open the listbox module again, the entry is colored, so you can see it immediately.
• You can also sort within listboxes.
• Via customizing, the listboxes can be set in a way that allows values from the listbox to be copied (input only via listbox).
  • In this case, the program checks the validity.
    • If the data field entry is not available in the listbox, it will be removed from the field. The user must repeat the input or open the listbox and select a valid value.
    • If the data field entry is available in the listbox, it will be copied.

Example

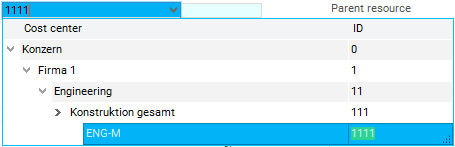

• Listbox sorted in ascending order with a selected entry and a tree structure on the Default cost center data field in the Resource Data Sheet module.

Notes

• If the listbox is assigned to an ID field, then the pull-down button will be removed from the display as soon as a valid value has been input into the field.
• If several users are editing simultaneously, the changes made by the last user to save will be applied.
• In listboxes you have the option to display/hide and move columns just like in regular modules.
  • When unhiding columns, the listbox must be reopened in order for the columns to become visible.

Partial String Input in Listboxes

Information

• In data fields which have listboxes, the data displayed in the listbox is to be restricted by specifying partial strings.
  • Partial strings are data field entries that have not been confirmed.
  • The string is marked (colored) in the listbox hits.
• If a partial string is entered in data fields with listboxes, the partial string functions as a filter criterion with * at the end.
  • If you enter planned* in the listbox field, all entries which begin with planned will be found.
  • If you want to show all entries which end on planned, you have to enter *planned in the listbox field.
• With the listbox open, the partial string can be further restricted. As a result, the data is changed according to the specifications.
• You can also use partial strings with a joker.

Input	string	*String*
Are Output	All data which contains the string.	All data which contains the string.
Example

Notes

• Once confirmed (with TAB or ENTER), the entry will no longer be a partial string but a field entry.
• If you copy an entry from another data field with Drag&Drop, the entry you have copied will not be considered a partial string.

Notes for customizers

• In which fields of the listbox it is searched for the entered string is defined via customizing.

Implicit/Explicit Listboxes

Information

• If you use partial strings, there are differences between implicit and explicit listboxes.
  • Implicit listboxes
    • are automatically opened when there are less than or precisely 25 hits in the listbox.
    • have to be opened manually if there are more than 25 hits in the listbox.
  • Explicit listboxes
    • do never open automatically, have always to be opened manually. In explicit listboxes, the partial string search is without function.
• whether a listbox is implicit or explicit is defined by the customizer.

Date Listboxes with Calendar Function

Information

• In PLANTA project, date data fields are preset with special calendar listboxes which are customized with the Calendar Control function.

Examples

• Date listbox on the Requested start field in the Project Core Data module:

• You can switch to monthly view by clicking on the month name.
  • The current month will then be colored.

Details

• By clicking on the calendar symbol at the right margin of the date field or via ALT + down-arrow you can open the date listbox and select the required entry.
• There are several views implemented within a calendar which offer the following navigation options:
  • When you open the listbox, the current month will be displayed in daily view by default.
    • The current date will be colored.
    • Using the arrows in the top bar you can navigate to the following or previous months.
  • by clicking on the required month you can change to the day view.
    • This function is an alternative to the time intensive scroll between the months in the day view.
  • From the month view you can change to the annual view by clicking on the appropriate year.
  • Every view level contains arrows for changing to the previous or following month or year.
    • How far you can navigate depends on the restrictions in customizing.
• Like in normal Listboxen, date listboxes can be defined via customizing so that only data from the listbox can be adopted.

Notes

• In a PLANTA standard system, date listboxes with calendar control are stored on all input date fields.
• System-wide three date listbox types are used (depending on start and end dates).
  • Past to today
  • Today to future
  • Past to future
• If several users are editing simultaneously, the changes made by the last user to save will be applied.

Checkboxes

Information

• Checkboxes are fields which only accept Yes/No values in the form of checked or unchecked checkboxes.

Example

• Checkboxes in the Project Core Data module.

Note

• If several users are editing simultaneously, the changes made by the last user to save will be applied.

Traffic Light Fields

Objective

• To highlight particular fields, e.g. by coloring

Information

• The values at which the field is to take another color are stored in the customizing.
• Graphics are sometimes used as traffic light symbols so that the traffic light function is also visible when using black-and-white print.

Example

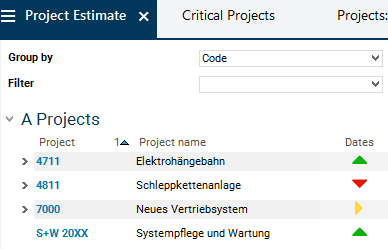

• Traffic light fields for project dates

Continuous Text Fields (CLOBs)

Information

• CLOB – Character Large Object – is a database field for storing very long text data.

Details

• Continuous texts are stored and managed directly in the database in data fields especially designed for this (CLOB).
• When a backup is carried out, no special attention needs to be paid to this data and no extra work is involved, as it has a fixed assignment in the database.
• Interfaces to other systems are therefore possible, i.e. continuous texts in PLANTA system can also be edited in other systems.

Notes

• In forms, the height of the continuous text is not automatically adjusted, only the part visible in the field will be displayed. The scroll bar allows the user to see that there is more text below the visible area.
• In table areas the continuous text area expands.
• When printing, the size of the continuous text field is determined by the data contained in this field.
• In continuous text fields, users can enter up to 3000 characters.
• If the "Markdown" behavior is set for the continuous text field in customizing, an editor for editing the text to be entered is opened.
• If several users are editing simultaneously, the changes made by the last user to save will be applied.

Example

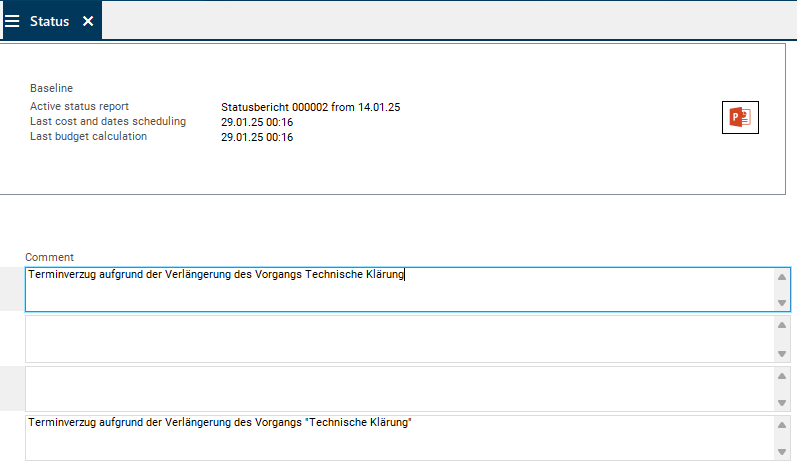

• The Comment field without an editor in the Status module.

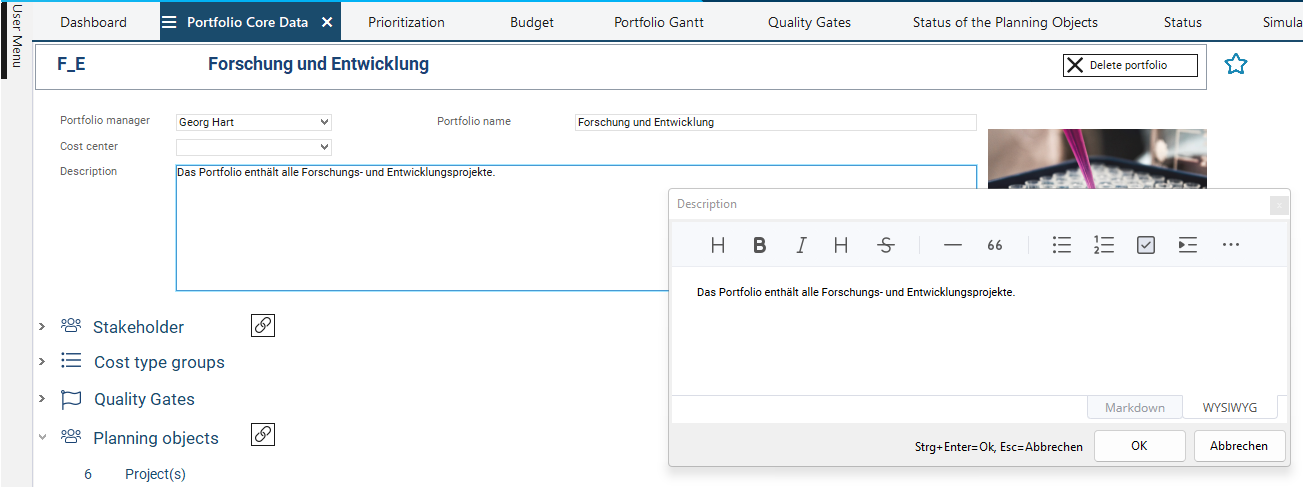

• The Description field with an editor in the Portfolio Core Data module.
