This topic describes the procedure of recording hours worked in PLANTA Hybrid via the extended time recording option. General information on extended time recording as well as a general overview of the time recording options in PLANTA Hybrid and on synchronization of time recording data, see here.
In the variant described here, working times are recorded in the Time Recording panel in PLANTA pulse recorded As a result, the hours worked can be recorded
both on cards of boards synchronized from PLANTA project or created directly in PLANTA pulse and
and directly on not synchronized PLANTA project tasks which are displayed in PLANTA pulse as soon the extended time recording option has been selected.
Time Recording panel in PLANTA pulse
Information
In the Time recording panel, tasks/cards on which the logged-on user is allowed to record hours worked are displayed. They are tasks/cards
in which the logged-on user is either planned in PLANTA project or in PLANTA pulse, or
on which the logged-on user has already recorded hours worked.
The tasks/cards are grouped as follows:
Favorites
Here, tasks are displayed with the respective projects which have previously been marked as favorites in one of the two groups mentioned above (favorite star activated).
Project / Board / Card
Here, only PLANTA pulse cards in which the logged-on user is planned or on which the user has already recorded hours are displayed.
Project / Task
Here, only PLANTA project tasks in which the logged-on user is planned or on which the user has already recorded hours are displayed.
For a better differentiation between cards and tasks, they are represented in different colors.
Details on the display below the time scale as well as on sum values
Present
Presence time values are displayed below the time scale. Next to the heading, the summed up weekly value is displayed in addition.
The area is only displayed if the Show presence parameter is activated in the time recording settings in PLANTA pulse.
Presence time can either be recorded in PLANTA pulse or in PLANTA project, or they can be imported from an external system.
Worked
For each day of the time scale, the summed up number of recorded hours worked throughout all tasks/cards is displayed. Next to the heading, the summed up weekly value is displayed in addition.
If presence times are activated, an additional traffic light is implemented here which indicates whether the hours worked exceed the presence (red), fall below it (yellow), or whether the values of presence and hours worked are equal (no highlighting).
Caution
In the Time Recording panel of PLANTA pulse,
only projects or tasks from PLANTA project are displayed,
which are not finished (actual end for project, task, and resource of the logged-on user are not filled)
are not completed (the Completed checkbox in the Time Recording module is not deactivated)
for which the respective project is active
Exceptions: locked, finished, completed tasks are displayed in the module if they already contain postings in the current week. They are marked with the symbol, which means that no further postings can be made on these tasks.
only cards are displayed,
to which the logged-on user is assigned as a member and
the start or due date of which lies within the current week.

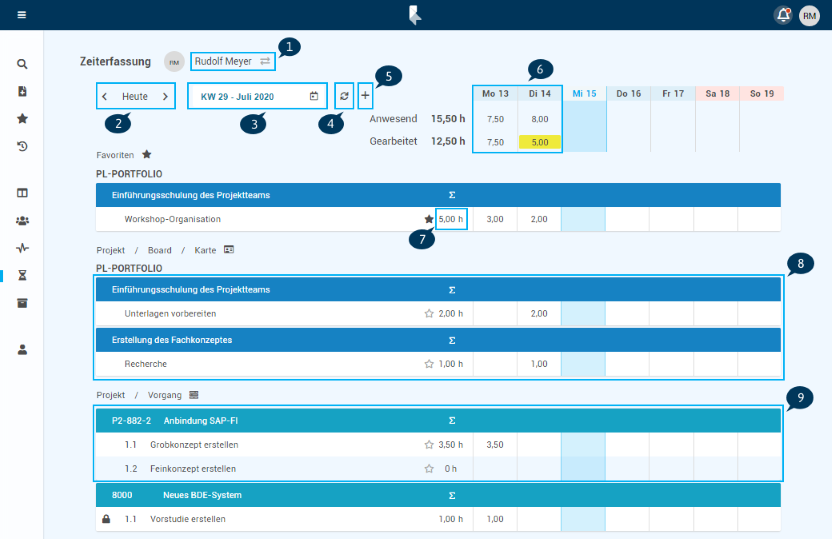

Example desktop view
Details
Button for recording hours worked for other users (1)
Jump to previous/current/next week (2)
Week selection (3)
Button for updating data (4)
Button for recording hours worked on further tasks (5)
Hours and presence of the current week (6)
Recorded hours per task/card and week (7)
Cards from synchronized boards on which hours worked can be recorded (8)
Tasks from PLANTA project on which hours worked can be recorded (9)

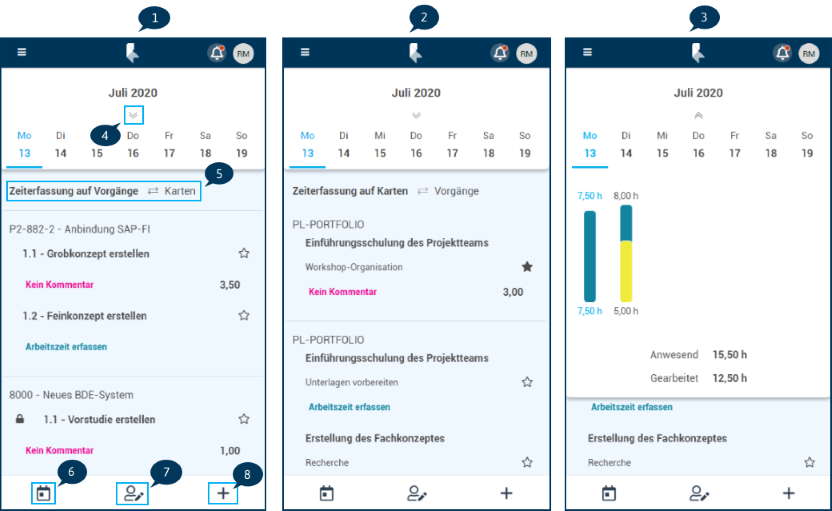

Example mobile view
Details
View: Time recording on tasks (1)
View: Time recording on tasks (2)
Weekly overview: Hours and presence of the current week (3) (see also 4)
Button for expanding the weekly view (4) (see also 3 )
Button for changing between time recording on tasks or cards (5)
Week selection (6)
Button for recording hours worked for other users (7)
Button for recording hours worked on further tasks (8)
Record Presence
Caution
The recording of presence is only possible if this option has been activated both in PLANTA pulse and in PLANTA project.
PLANTA pulse
The Show presence and Record presence time options in the time recording settings must be activated.
Click on below the time scale at the required day.
A dialog window for the recording of presence time is opened.
The Record presence time area already contains two empty records for recording presence and break times by default.
Enter the required times in the Start and End fields in the presence record. The duration is calculated automatically.
Enter a comment in the Comment field if required.
In PLANTA project, the comment field has 80 characters. If a longer comment is written in PLANTA pulse, it will be shortened to the length applicable in PLANTA project upon transmission.
Click on Save.
Record a break in the Break record
in the same way in which presence times are recorded. The duration is then automatically calculated on this basis.
Alternatively you can enter the break duration directly in the Duration field (without times).
Details
If break times are recorded, they are automatically subtracted from the presence times and the adjusted actual presence sum value for the selected day is displayed at the top of the module.
Tip
Breaks do not necessarily have to be recorded explicitly. It is possible to only record presence times in several entries and to leave gaps between the entries which then count as breaks.
Notes
If there are several presence entries, the times recorded in them must not overlap.
If there are several break entries, the times recorded therein must not overlap.
Break records must lie entirely within the recorded absence period on the same day.
Example: If a presence with 09:00-12:00 has been recorded, a record with break from 11:30-12:30 is not valid.
In the case of time overlapping or breaks outside the presence period, respective messages are displayed.
Record Own Hours Worked on Tasks/Cards in which One is Planned
Information
If no hours worked have been recorded yet, only tasks/cards in which the employee is directly planned are shown in theTime Recordingpanel initially.
However, it is possible to add projects in which one is not directly planned via the button. For this purpose, see also the Record hours worked on further tasks/cards section
Procedure
Either click on the task/card name (for time recording on the current day) or on a particular day below the Time Scale in the line of the task/card (for time recording on the selected day).
A dialog window for the recording of hours worked will be opened.
Enter the hours worked in the Worked field and add a comment if required.
In PLANTA project, the comment field has 80 characters. If a longer comment is written in PLANTA pulse, it will be shortened to the length applicable in PLANTA project upon transmission.
Change the date if required.
Click on Save.
Scroll in the calendar
At the top left you can scroll to another week
via the arrow buttons next to the Today button or
by selecting the respective calendar week in the date listbox.
This enables you to post actual hours to tasks which are not planned for the current week but which have been planned for previous weeks.
Via the Today button you can switch back to the current week.
When working hybridly, the key date defined in PLANTA project is also considered in time recording in PLANTA pulse. You can browse back beyond thekey date, however, the recording of hours before the key date remains impossible. If a user tries to record hours before the key date anyway, the Creation not possible: date is earlier than key date. message will be displayed.
Change time recording format
Users can choose whether they want to record their hours worked in decimal format (e.g. 3.5 h) or in HH.MM format (e.g. 03.30 h).
A dialog window for the recording of hours worked will be opened.
Search for the required task or for the required card.
Select the task/card in the search results.
Enter the hours worked in the Worked field in the right-hand area of the dialog window and add a comment if required.
In PLANTA project, the comment field has 80 characters. If a longer comment is written in PLANTA pulse, it will be shortened to the length applicable in PLANTA project upon transmission.
Change the date if required.
Click on Save.
Details
Below the search field there is a quick access area which contains the favorites and the tasks/cards on which the user has recorded his/her last hours worked (in the current or in the previous week).
Search Tasks/Cards
Information
Tasks/cards to which the logged-on user is not assigned yet are not displayed in the Time Recording panel by default.
In order to be able to record hours on them anyway, they can be searched as described above via via the search field or via search options after the dialog window has been opened.
Search for a search term in the search field.
Enter the required term in the search field.
Confirm the search by pressing Enter or by clicking on .
Tasks and cards of all projects are searched by default.
If you want to search in a particular project, you can use the Suchoptionen.
Via , the search parameters can be reset.
Search in a particular project via search options
Click on next to the search field to open the search options.
Select the required project from the listbox.
In doing so, the key word "projectid" and the functional ID of the project (in PLANTA project projects) or the project key (in PLANTA pulse projects) of the selected project is inserted in the search field.
If you know the functional project ID or the project key, the key word "projectid" can also be entered directly in the search field along with the ID/project key. If the functional ID contains blanks, the complete ID must be put in quotation marks.
In order to refine the search, add an additional search term to search for particular tasks or cards in the project.
Confirm the search query by pressing Enter or by clicking on .
Via in the search field, the search parameters can be reset.
When synchronizing tasks as boards in PLANTA pulse, new projects are created in PLANTA pulse. The cards of the synchronized boards can therefore only be found when using the PLANTA pulse project key and not when using the functional ID of the project from PLANTA project.
Details
Locked, finished, completed, and inactive tasks are not listed in the search results.
Boards without cards are not listed in the search results.
Upper and lower case notion is ignored in search terms.
If several terms are entered, tasks which contain all terms in the specified order are displayed.
The search results are displayed in 3 tabs.
Last posted on: tasks and cards on which hours have already been posted recently
Planned: tasks and cards on which the logged-on user is planned
All: all tasks and cards which the logged-on user is allowed to see
If the task in PLANTA project has no functional ID, the technical IDwill be displayed instead and be used for sorting.
Examples
Concept
finds all tasks and cards which contain the term "concept"
Create concept
finds all tasks and cards which contain the term "create concept" (in this order)
projectid:4711
finds all tasks and cards in the project with project ID or with project key "4711"
projectid:"Web 2020"
finds all tasks and cards in the project with project ID or with project key "Web 2020”
projectId:8000 concept
finds all tasks and cards in the project with project ID or with project key "8000" which contain the term "concept".
projectid:"Web 2020" concept
finds all tasks and cards in the project with project ID or with project key "Web 2020" which contain the term "concept"
Notes
If a task from PLANTA project has been synchronized with PLANTA pulse, it will only be found as a PLANTA pulse element, not as a PLANTA project element. Hours worked can only be posted on cards of this board. They cannot be posted directly on the task.
Exception: Tasks which are synchronized but on which the user has already recorded actual hours in PLANTA project in the current week are shown in the overview.
Since in PLANTA pulse hours worked can only be recorded on cards and not on boards or on projects, the synchronized boards can only be found in the time recording search if they contain cards.
When synchronizing tasks as boards in PLANTA pulse, new projects are created in PLANTA pulse. In the Suchoptionen project listbox, both the PLANTA project project and the PLANTA pulse project are displayed.
Delete/Change Recorded Hours Worked
Change hours worked
Click on the task or card name of the task/card on which the hours to be changed were recorded, or click directly on the required hour value below the time scale.
Click on the required hour record in the upper area of the dialog window.
Make the changes in the lower Edit time recording area.
Click on Save.
Via the Back button, the editing mode can be quit without saving changes.
Delete hours worked
Click on the task or card name of the task/card on which the hours to be changed were recorded, or click directly on the required hour value below the time scale.
Click on the required hour record in the upper area of the dialog window.
Click on the Delete button in the lower area
Confirm the query.
Via the Back button, the editing mode can be quit without saving changes.
Note
Reverse Postings are automatically created by default if the deletion/correction of already recorded actual data is prevented by the PLANTA software.
Record Hours Worked for Other User
Information
In the Time recording panel of PLANTA pulse, logged-in users can record working times on tasks for other users, provided that the confirming user has access rights to other users (resources). This is defined in PLANTA projectwhen the user authorizations are set.
Procedure
Click on your own name or on .
A listbox for the selection of a user will be opened.
The listbox can be filtered by specifying a name substring.
Select the required user.
The view in theTime Recording panel is updated. Now, planning elements of the selected user are displayed.
