Mapping Parameters MOD009C45
Error rendering macro 'fontawesome-macro' : Page loading failed
Access- PLANTA link role → Interface Configuration → Configuration and Execution panel → Configuration → Edit parameters button on a mapping element → Mapping Parameters
- Error rendering macro 'fontawesome-macro' : Page loading failedIf the mapping element has no parameters, the No parameters available message is displayed in the status line and the Mapping Parameters module will not be opened.
Error rendering macro 'fontawesome-macro' : Page loading failed
Information- The module enables the parameterization of the mapping elements that contain specific functions.
- Error rendering macro 'fontawesome-macro' : Page loading failedMapping elements of the Source, Pool, or Target type cannot be parameterized.
- Via the Link on the mapping function name, the description of this function can be opened in the Online Help under (39.5.18-en) Interface Library#MappingFunktionen.
Error rendering macro 'fontawesome-macro' : Page loading failed
Relative parameters- Instead of entering a fixed value, the result of another column may as well be referenced.
- For this purpose, the value from the Object field of the target mapping, which is to be used as parameter, must be entered with prefixed @ signs.
- If the "@" value is to be used explicitly, the value must be escaped with a prefixed backslash: "\@"
Error rendering macro 'fontawesome-macro' : Page loading failed

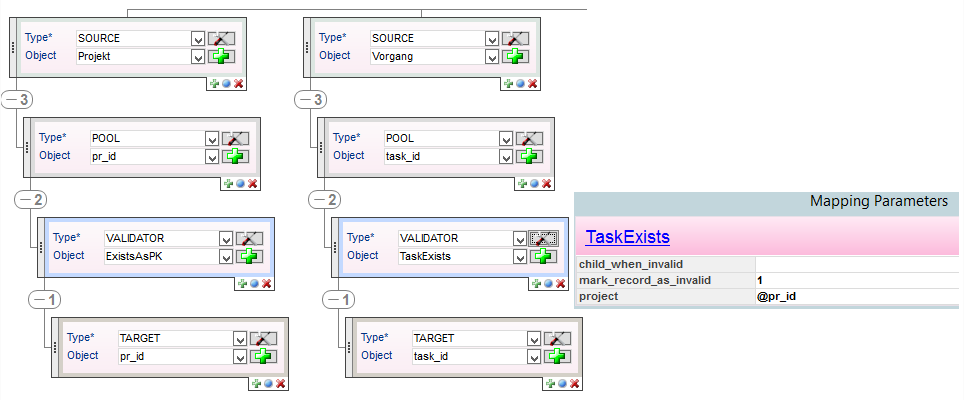

Example- The TaskExists validator requires a project ID to check whether the transferred task ID does exist in this project.
