Axes MOD009DHE

Access

Customizer → Chart Customizer → Chart Configurations → Chart Configurations by Work Area → Open required chart →
Axes
Customizer → Chart Customizer → Chart Configurations → Chart Configurations Direct Editing → Open required chart →
Axes
Open the required user module → Click on the button on a chart →
Axes

Information

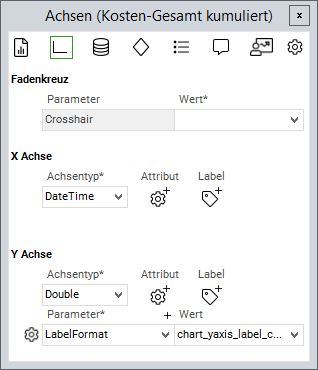

In this module you can edit the attributes of the axes of a chart.

Notes

This module can only be opened for charts with axes (e.g. not for pie charts).
In bar charts, the X-axis is vertical and the Y-axis is horizontal.

Example

Details

Using the Crosshair parameter you can define whether a cross-hair pointer is to be displayed when the cursor hovers over the chart.
The 0.0 point of axis charts is located at the lower left and the data is added from bottom to top.

Axis type

Information

You can select an axis type for each axis. By default, the following types are available:

Axis type	Description
`Double`	Numeric values
`DateTime`	Date values
`Logarithmic`	Represents numbers on a logarithmic scale
`Category`	Text values

Axis parameters

Information

Using the following parameters you can define the axes of a chart in detail.

Axis parameters	Description
`Minimum`	Minimum value of the axis
`Maximum`	Maximum value of the axis
`Interval`	Defines the unit of the axis steps.
`IntervalType`	Defines the steps of a `DateTime` axis. Possible values: `Auto, Days, Hours, Minutes, Months, Years` Can be combined with `Interval`. `IntervalType = Months` and `Interval = 2` causes, e.g., that there is a step on the axis every 2 months.
`RangePadding`	Defines how the values are to be displayed at the front and at the back. Possible values: `None, Auto, Additional, Normal, Round`
`LabelFormat`	Formatting of axis labels. Allows for placeholders like, e.g., `{value}€`. Here you can also use the Python-ID of a data field to have its DF heading displayed. Format parameter for `Double` axes Format parameter for `DateTime` axes
`RoundToIntervalType`	Defines whether the date values in `DateTime` axes are to be rounded down to the 1st day of the interval from `IntervalType`. Possible values: `true/false`
`Title`	Title of the axis Here you can also use the Python-ID of a data field to have its DF heading displayed.
`GridLineWidth`	Width of the grid lines
`AxisLineWidth`	Width of the axis lines
`AxisTickWidth`	Width of the tick marks
`StuffPoints`	Defines whether missing data points are to stuffed on this axis. The value on this axis is determined by the defined `Interval` and the value on the other axis is determined by the defined `DefaultValue`. Possible values: `true / false`
`DefaultValue`	Value which is used to insert missing data points (`StuffPoints`) Default values: `Double` axis type: 0 `DateTime` axis type: today’s date
