Tooltip MOD009DHI

Access

Customizer → Layout Objects → Charts → Chart Configurations by Work Area → Click on the link of the required chart to open the Chart Customizer →
Tooltip
Customizer → Layout Objects → Charts → Chart Configurations Direct Editing → Click on the link on the required chart to open the Chart Customizer →
Tooltip
Open the required user module → Click on the button on a chart to open the Chart Customizer →
Tooltip

Information

In this module you can configure the tooltip which will be displayed when the cursor hovers over a the data point of a chart.

Details

As a subtitle you can either enter a fixed string or the Python ID of a data field from the chart area.
- If a Python ID is entered, the data field heading of the respective data field will be displayed in the language set for the user.
The Tooltip field is the tooltip of the data field on which the chart was created.
- The tooltip can thus be translated as well.

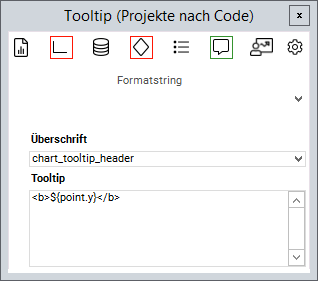

Example

Format strings

Via the Format string listbox you can insert different strings in order to format the tooltip as desired.

Code	Explanation
`${point.x}`	Represents the current `X` value
`${point.y}`	Represents the current `Y` value
`${point.text}`	Represents the current `Text` value
`${point.percentage}%`	Represents the current percentage value
`${series.name}`	Represents the current `Name` value
`<b>...</b>`	Formats a text in bold font
`<i>...</i>`	Formats a text in italic font
`<br />`	Inserts a line break
