Open the required user module → Click on the button on a chart to open the Chart Customizer → Data Series
Information
In this module you can edit the attributes of the data series of a chart.
Depending on the chart type of the opened chart, different data areas will be displayed in the module
Notes
You can only create one data series per pie chart.
By right-clicking in the module and selecting the Configure series-specific markers context menu command, you can insert an individual marker configuration in the Marker module which will only be used for the respective data series.
By right-clicking in the module and selecting the Edit data points context menu command, you can configure the data points of a data series individually in the Data Points module.
By configuring data points individually, the corresponding settings which have possibly been configured in the Data Series module are overwritten.

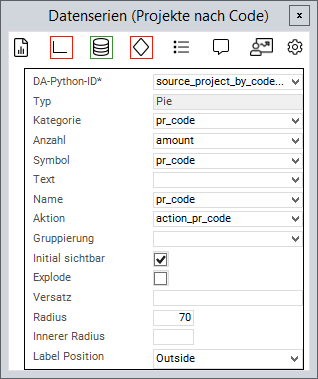

Example
Chart Attributes
Information
An attribute is linked to a value from the source area via the Python ID.
The value of the data field is then further processed.
General Attributes
Attribute
Explanation
DA Python ID
Python ID of the source data area
Type
The chart type in which the data series is to be represented, e.g. Line or Pie
Name
Text in the legend
text
Name on the data point
Symbol
Applies the data field color to the data point. Works with traffic lights
Action
Defines a data field the action of which will be triggered when the data point is clicked on
Grouping
The values of the series are grouped by the value in this data field
Initially visible
When deactivated, the values of this series will not be displayed initially and must be activated via the legend
X
Point on the X-axis at which the data point is to be set
Y
Point on the Y-axis at which the data point is to be set
Label symbols
ID of the PLANTA symbol which is used to determine the text font. Overrides LabelSize and LabelColor attributes of the marker object.
Zero value behavior
This parameter is used to configure how 0 values are taken into account and how they are displayed in the chart. Possible settings:
Zero
Drop
Gap
Average
Trendlines
Trendline to the corresponding data series. Can be used in all charts with axes.
