Expert Mode MOD009DJD

Customizer → Layout Objects → Charts→ Chart Configurations by Work Area → Click on the link of the required chart to open the Chart Customizer­→ Expert Mode

Customizer → Layout Objects → Charts → Chart Configurations Direct Editing → Click on the link of the required chart to open the Chart Customizer → Expert Mode

Open the required user module → Click on the

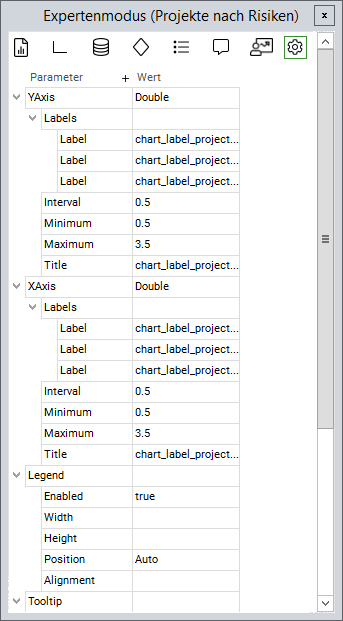

In this module, the chart data from DT585 Chart parameters are displayed in table form and can be edited.

The

Via the plus button you can insert new parameters.

You can, e.g., use this to insert parameters which are made available in a new client release without having to update to a new DB release.

Example:

• There’s a new category named "NewAttribute" which contains a child element with the key "Foo" and the value "Bar":

•

• In the JSON, this is interpreted as follows:

• CODE

  "NeuesAttribut": {
          "Foo": "Bar"
      }
