Marker MOD009DHU

Access

Information

  • In this module, you can configure the markers which are to appear on the data points of a data series.

Note

  • If no data is displayed in a chart, this may indicate that no markers have been configured.

  • By default, the markers configured in the module are used for all data series of the chart.

    • Via the → Configure series specific marker context menu in the Data Series module you can insert a marker configuration which is only used for the respective data series.

Example

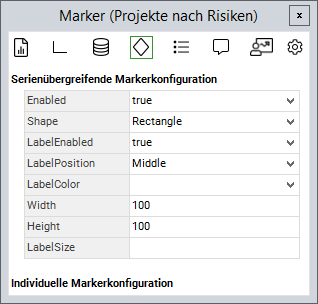

Attributes

Attribute

Description

Enabled

Switch markers for the data series on/off

Possible values: true/false

Shape

Shape of the markers

possible values:

  • Circle


  • Diamond


  • Rectangle


  • Triangle


  • InvertedTriangle


  • Pentagon


  • Cross


  • HorizontalLine


  • VerticalLine


LabelEnabled

Switch text on markers on/off

Possible values: true/false

LabelPosition

Position of the text

possible values:

  • Auto

  • Middle

  • Bottom

  • Top

LabelColor

Text color must be specified as a hexcode

Width

Width of the text

Height

Height of the text

LabelSize

Font size of the text
