Axes MOD009DHE

Access

Customizer → Layout Objects → Charts → Chart Configurations by Work Area → Click on the link of the required chart to open the Chart Customizer →
Axes
Customizer → Layout Objects → Charts → Chart Configurations Direct Editing → Click on the link of the required chart to open the Chart Customizer →
Axes
Open the required user module → Click on the button on a chart to open the Chart Customizer →
Axes

Information

In this module you can edit the attributes of the axes of a chart.

Notes

This module can only be opened for charts with axes (e.g. not for pie charts).
In bar charts, the X-axis is vertical and the Y-axis is horizontal.

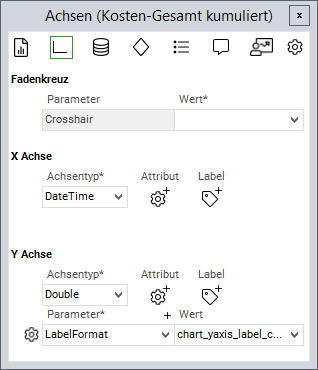

Example

Details

Using the Crosshair parameter you can define whether a cross-hair pointer is to be displayed when the cursor hovers over the chart.
The 0.0 point of axis charts is located at the lower left and the data is added from bottom to top.

Axis type

Information

You can select an axis type for each axis. By default, the following types are available:

Axis type	Description
`Double`	Numeric values
`DateTime`	Date values
`Logarithmic`	Represents numbers on a logarithmic scale
`Category`	Text values
`DateTimeCategory`	Align the date values with the axis values

Axis parameters

Information

Using the following parameters you can define the axes of a chart in detail.

Axis parameters	Description
`Minimum`	Minimum value of the axis
`Maximum`	Maximum value of the axis
`Interval`	Defines the unit of the axis steps.
`IntervalType`	Defines the steps of a `DateTime` axis. Possible values: `Auto, Days, Hours, Minutes, Months, Years` Can be combined with `Interval`. `IntervalType = Months` and `Interval = 2` causes, e.g., that there is a step on the axis every 2 months.
`RangePadding`	Defines how the values are to be displayed at the front and at the back. Possible values: `None, Auto, Additional, Normal, Round`
`LabelFormat`	Formatting of axis labels. Allows for placeholders like, e.g., `{value}€`. Here you can also use the Python ID of a data field to have its DF heading displayed. Format parameter for `Double` axes Format parameter for `DateTime` axes
`RoundToIntervalType`	Defines whether the date values in `DateTime` axes are to be rounded down to the 1st day of the interval from `IntervalType`. Possible values: `true / false`
`Title`	Title of the axis Here you can also use the Python ID of a data field to have its DF heading displayed.
`GridLineWidth`	Width of the grid lines
`AxisLineWidth`	Width of the axis lines
`AxisTickWidth`	Width of the tick marks
`StuffPoints`	Defines whether missing data points are to stuffed on this axis. The value on this axis is determined by the defined `Interval` and the value on the other axis is determined by the defined `DefaultValue`. Possible values: `true / false`
`DefaultValue`	Value which is used to insert missing data points (`StuffPoints`) Default values: `Double` axis type: 0 `DateTime` axis type: today’s date
`ShowTodayLine`	Determines whether a today line is to be displayed. Possible values: `true / false`
`IsInversed`	Determines whether the axis is inverted. If an axis is inverted, the greatest value on the axis is moved closer to the origin and vice versa. Possible values: `true / false`
`LabelIntersectAction`	This parameter serves to choose different layouts for chart axes.
`LabelPlacement`	Defines the position of the axis labels. Values: `BetweenTicks`, `OnTicks`. Default value: `BetweenTicks`
