Basic Data MOD009DH5

Access

  • Customizer → Layout Objects → Charts → Chart Configurations by Work Area → Click on the link of the required chart to open the Chart Customizer → IconBasisdaten.png Basic Data

  • Customizer → Layout Objects → Charts → Chart Configurations Direct Editing → Click on the link of the required chart to open the Chart Customizer → IconBasisdaten.png Basic Data

  • Open the required user module → Click on the button on a chart to open the Chart Customizer → IconBasisdaten.png Basic Data

  • Open the required user module → Click on the Start chart customizing button on a chart data field → Select a chart type in the Select Chart Type module → → IconBasisdaten.png Basic Data in the Chart Customizer

Information

  • In this module, the descriptive data of a chart, e.g. title or chart type, can be specified and edited.

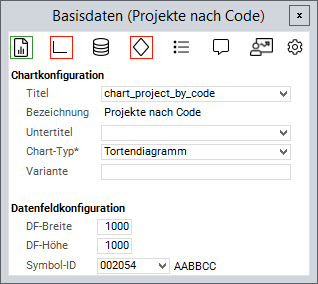

Example


Details

  • In the Title and Subtitle fields you can either enter fixed strings or the Python ID of a data field from the chart area.

    • If a Python ID is entered, the data field heading of the respective data field will be displayed in the language set for the user.

  • In the Name field, either the Title or, if available, the data field heading of the title will be displayed.

  • The name of the Variant is optional and only has to be specified if there are several chart configurations on the data field.

  • In the Color Range field you can select a color range for the chart.

  • In the Data field configuration area you can adjust DF height and DF width as well as the Symbol ID of the chart data field.
