Expert Mode MOD009DJD

Access

• Customizer → Layout Objects → Charts→ Chart Configurations by Work Area → Click on the link of the required chart to open the Chart Customizer→ Expert Mode

• Customizer → Layout Objects → Charts → Chart Configurations Direct Editing → Click on the link of the required chart to open the Chart Customizer → Expert Mode

• Open the required user module → Click on the button on a chart to open the Chart Customizer → Expert Mode

Information

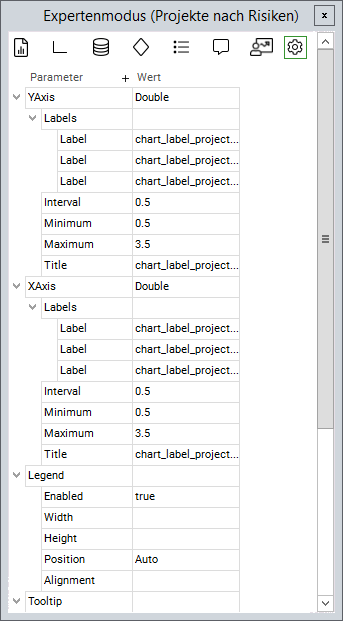

• In this module, the chart data from DT585 Chart parameters are displayed in table form and can be edited.

Note

• The button for opening the chart customizer is only shown to users with customizer rights.

Details

• Via the plus button you can insert new parameters.

• You can, e.g., use this to insert parameters which are made available in a new client release without having to update to a new DB release.

• Example:

  • There’s a new category named "NewAttribute" which contains a child element with the key "Foo" and the value "Bar":

  •

  • In the JSON, this is interpreted as follows:

  • "NeuesAttribut": {
            "Foo": "Bar"
        }





Example
