Tooltip MOD009DHI

Access

Information

  • In this module you can configure the tooltip which will be displayed when the cursor hovers over a chart data point.

Note

  • The button for opening the Chart Customizer is only displayed to users with customizer rights.

Details

  • As a subtitle you can either enter a fixed string or the Python ID of a data field from the chart area.

    • If a Python ID is entered, the data field heading of the respective data field will be displayed in the language set for the user.

  • The Tooltip field is the tooltip of the data field on which the chart was created.

    • The tooltip can thus be translated as well.

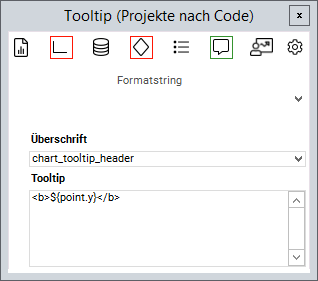

Example


Format strings

  • Via the Format string listbox you can insert different strings in order to format the tooltip as desired.

Code

Explanation

${point.x}

Represents the current X value

${point.y}

Represents the current Y value

${point.text}

Represents the current Text value

${point.percentage}%

Represents the current percentage value

${series.name}

Represents the current Name value

<b>...</b>

Formats a text in bold font

<i>...</i>

Formats a text in italic font

<br />

Inserts a line break
